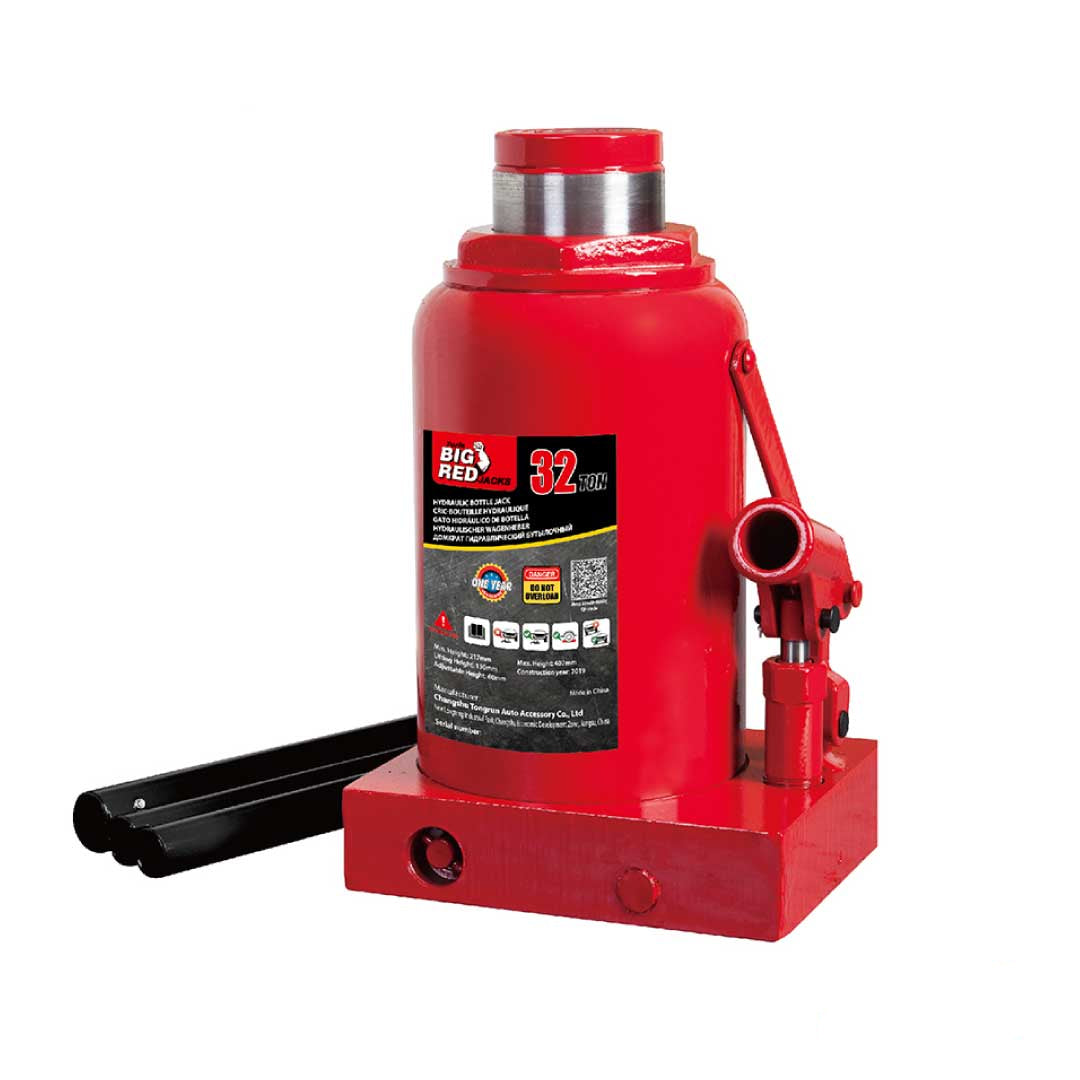

Big Red Hydraulic Bottle Jack 30/32 ton Red
This BIGRED product is designed for lifting. The jack can be used vertically or angled to 3 degrees from a vertical position. After lifting, loads must be immediately supported by jack stands. Each model is suitable for use in lifting or positioning vehicles, machinery, houses, and/or other building structures.
- Heat-treated extension screw allows low pickup height adjustment and maximum lift height.
- Serrated, heat treated saddle provides generous lifting area and secure grip.
- A wide, rugged base provides stability and strength. All models critical stress points are reinforced for added durability and dependability.
Direction for use :
TO RAISE:
-
With the narrow end of the jack handle. close release valve tightly by turning it clockwise
-
Place the jack under the vehicle at the proper lilting location. (Refer to vehicle Owner's Manual. f) it needed, turn the extension screw-on jack counterclockwise until it comes into contact with the vehicle.
-
insert jack handle into handle socket. Pump the handle to lift the vehicle to the desired height.
TO LOWER:
CAUTION: LOWER vehicle SLOWLY! TURN RELEASE VALVE�� SLOWLY!
OPERATING INSTRUCTIONS
Before using the jack:
-
Using the handle, open the release valve by rotating it counterclockwise one full turn,
-
Place the handle in the handle socket and pump about 6 full strokes to purge the air from the pump and valve.
-
Close the release valve. Pump the handle until the jack has reached full extension. Continue to pump several times to purge air from under the ram.
-
Open the release valve and push the ram into its lowest position. Close the release valve and operate normal
